Background

Sublime Enterprise users on Cloud and AWS CloudFormation deployments can configure all audit logs and message events to export to an S3 bucket that you own every 10 minutes.

Note: Enterprise users on Docker deployments can request assistance with exports to S3 in your Sublime support Slack channel.

1. Setup

Before starting, you'll need to:

Determine the ID of the AWS account uploads will be coming from (used for AWS_ACCOUNT_ID placeholder below):
- If you've deployed into a self-managed AWS environment, then the Account ID will be that of the AWS account.
- If you are a Sublime Cloud user located in the EU, then the value you'll use is 128225141972.
- For all other Sublime Cloud users, then the value you'll use is 415365657389.
Create an S3 bucket in the AWS account where you want the events exported to. We recommend creating a new S3 bucket specifically for these exports instead of re-using an existing one.

2. Configure bucket permissions

These instructions assume you have a bucket with default settings and bucket policies.

Navigate to your desired bucket in the AWS S3 dashboard, and go to the Permissions tab.
Click Edit on the Block public access (bucket settings) section, which should bring you to the following page:

Make sure the final checkbox is deselected. The other three should remain checked, unless you have a particular reason not to. Save these changes.
Now, scroll down to the Bucket policy section (still on the Permissions tab). This is where we'll set up the policy to allow cross-account uploads from the account Sublime is running in. Click Edit on the Bucket Policy tab.
Use the following template as the Policy. Update the placeholders AWS_ACCOUNT_ID (use the ID from Setup step 1 -- the AWS account where exports are coming from) and BUCKET_NAME_HERE with the corresponding values. Save changes once complete.

{
	"Version": "2012-10-17",
	"Statement": [
		{
			"Sid": "AllowSublimeWrites",
			"Effect": "Allow",
			"Principal": {
				"AWS": "arn:aws:iam::AWS_ACCOUNT_ID:root"
			},
			"Action": [
				"s3:PutObject*"
			],
			"Resource": [
				"arn:aws:s3:::BUCKET_NAME_HERE/*"
			]
		}
	]
}

The bucket is now configured for cross-account uploads from the Sublime platform.

3. Configure settings in Sublime

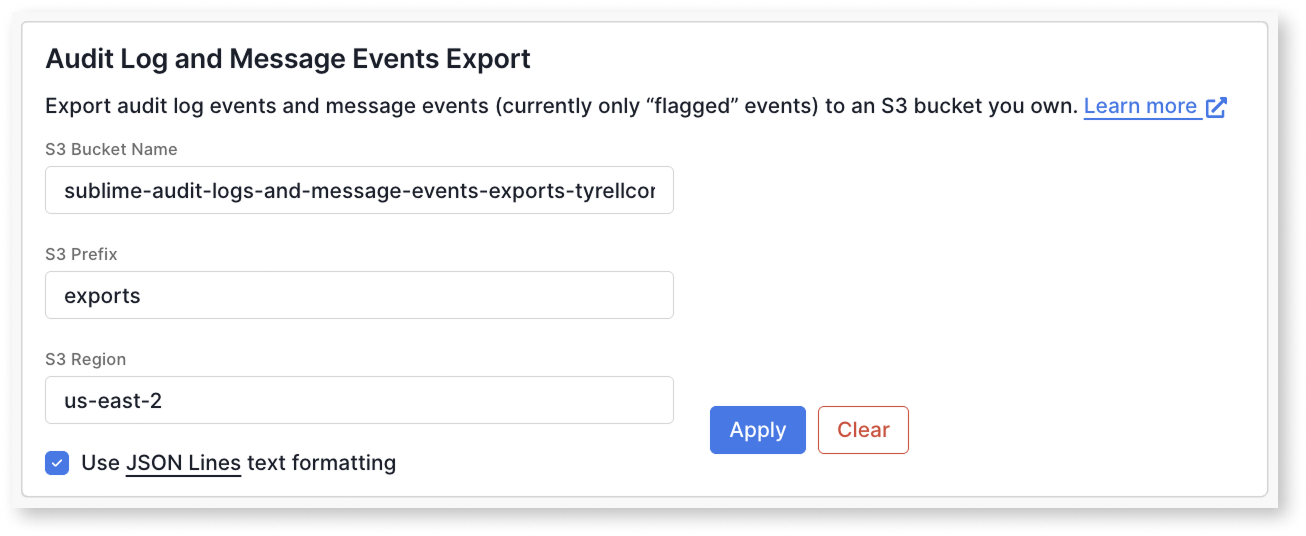

To complete configuration, head over to Account > Admin in your Sublime dashboard and scroll down to the Audit Log and Message Events Export setting. Configure the following fields:

S3 bucket name: Bucket names must be globally unique. They can be named anything but here’s a sample format: sublime-audit-log-and-message-events-export-<your-organization-name>
S3 prefix (optional): Configuring a prefix will store your exports in a folder with the prefix name within the bucket. A prefix is not necessary if the bucket is not used for any other use cases (recommended).
Example prefix: exports
S3 region: the region you created the S3 bucket in

After hitting Apply, it may take up to 20 minutes before you start seeing events in S3. After the first export, exports take place every 10 minutes.

S3 Export Details

File Names

The filename (with prefixes) is output as follows:

ConfiguredKeyPrefix/AuditType/YYYY/MM/DD/HHMMSSZ-ID.json

Where each is as follows:

ConfiguredKeyPrefix: The key prefix that was configured in your Sublime Platform settings. If you did not set a prefix, this field will be omitted.

AuditType: The type of audit content, either sublime_platform_audit_log or sublime_platform_message_events

YYYY: Year

MM: Month, zero-padded

DD: Day, zero-padded

HHMMSSZ: The hour, minute, seconds, and timezone, zero-padded

ID: Six random characters

Example Audit Logs

This includes all audit log events, stored under the sublime_platform_audit_log type.

Example 1 (empty):

{
  "events": null,
  "count": 0,
  "start": "2023-05-03T23:55:01.06552Z",
  "end": "2023-05-04T00:05:00.309749667Z",
  "key": "sublime_platform_audit_log/2023/05/04/000500Z-LPPJKV.json"
}

Example 2:

{
  "events": [
    {
      "id": "beace168-2c8f-43ca-9e4b-6d7f76af1ddc",
      "type": "message.view_contents",
      "created_at": "2023-05-04T00:59:29.58391Z",
      "data": {
        "request": {
          "id": "c61dafcb-dfdd-41bb-acdc-e66fee4148c4",
          "path": "/v1/messages/groups/0c8e2ef2a2eb02fbbdafb74c8dc5e27ab1096527cc1d07483cf4519a5478dd5f",
          "method": "GET",
          "query": {},
          "body": "",
          "authentication_method": "user_session",
          "ip": "71.81.206.41/32",
          "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36"
        }
      },
      "created_by": {
        "id": "8ccab895-d27f-4250-9d51-ae50793d3a68",
        "first_name": "Sublime",
        "last_name": "Test",
        "email_address": "[email protected]",
        "phone_number": null,
        "created_at": "2021-06-21T18:09:27.66874Z",
        "updated_at": "2022-06-14T09:11:38.629119Z",
        "role": "admin",
        "is_enrolled": true,
        "google_oauth_user_id": "",
        "microsoft_oauth_user_id": ""
      }
    },
    {
      "id": "a7e29e07-6ce6-429a-88a7-b29b6fb55d38",
      "type": "message_group.trash",
      "created_at": "2023-05-04T00:59:25.252995Z",
      "data": {
        "message_group": {
          "id": "0c8e2ef2a2eb02fbbdafb74c8dc5e27ab1096527cc1d07483cf4519a5478dd5f"
        },
        "request": {
          "id": "316a16b1-2658-4b9b-bc74-3302c2662665",
          "path": "/v1/messages/groups/0c8e2ef2a2eb02fbbdafb74c8dc5e27ab1096527cc1d07483cf4519a5478dd5f/delete",
          "method": "POST",
          "query": {},
          "body": "{\"review_comment\":\"\",\"share_with_sublime\":false}",
          "authentication_method": "user_session",
          "ip": "71.81.206.41/32",
          "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36"
        }
      },
      "created_by": {
        "id": "8ccab895-d27f-4250-9d51-ae50793d3a68",
        "first_name": "Sublime",
        "last_name": "Test",
        "email_address": "[email protected]",
        "phone_number": null,
        "created_at": "2021-06-21T18:09:27.66874Z",
        "updated_at": "2022-06-14T09:11:38.629119Z",
        "role": "admin",
        "is_enrolled": true,
        "google_oauth_user_id": "",
        "microsoft_oauth_user_id": ""
      }
    },
    {
      "id": "6930efb2-bc40-4e90-a206-7fb2211cf3aa",
      "type": "message.view_contents",
      "created_at": "2023-05-04T00:58:29.179602Z",
      "data": {
        "request": {
          "id": "9ed8b3ee-bab2-493c-a675-44344df32a91",
          "path": "/v1/messages/groups/0c8e2ef2a2eb02fbbdafb74c8dc5e27ab1096527cc1d07483cf4519a5478dd5f",
          "method": "GET",
          "query": {},
          "body": "",
          "authentication_method": "user_session",
          "ip": "71.81.206.41/32",
          "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36"
        }
      },
      "created_by": {
        "id": "8ccab895-d27f-4250-9d51-ae50793d3a68",
        "first_name": "Sublime",
        "last_name": "Test",
        "email_address": "[email protected]",
        "phone_number": null,
        "created_at": "2021-06-21T18:09:27.66874Z",
        "updated_at": "2022-06-14T09:11:38.629119Z",
        "role": "admin",
        "is_enrolled": true,
        "google_oauth_user_id": "",
        "microsoft_oauth_user_id": ""
      }
    },
    {
      "id": "5545d2da-04d2-482d-a32e-a9e494b782d9",
      "type": "message.view_contents",
      "created_at": "2023-05-04T00:58:29.159373Z",
      "data": {
        "request": {
          "id": "16967ed4-7b70-44f1-9a5b-0be4c46f0f02",
          "path": "/v0/messages/6e079728-0cec-4388-87c2-d35595fed536/image_link",
          "method": "GET",
          "query": {},
          "body": "",
          "authentication_method": "user_session",
          "ip": "71.81.206.41/32",
          "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36"
        }
      },
      "created_by": {
        "id": "8ccab895-d27f-4250-9d51-ae50793d3a68",
        "first_name": "Sublime",
        "last_name": "Test",
        "email_address": "[email protected]",
        "phone_number": null,
        "created_at": "2021-06-21T18:09:27.66874Z",
        "updated_at": "2022-06-14T09:11:38.629119Z",
        "role": "admin",
        "is_enrolled": true,
        "google_oauth_user_id": "",
        "microsoft_oauth_user_id": ""
      }
    },
    {
      "id": "06e1fe91-6963-4bc6-96a6-1f141dedd974",
      "type": "message.access_justification",
      "created_at": "2023-05-04T00:58:28.911435Z",
      "data": {
        "message": {
          "id": "6e079728-0cec-4388-87c2-d35595fed536"
        },
        "request": {
          "id": "934a3a0c-1794-4204-bc4a-e37c9e405f9d",
          "path": "/v1/messages/6e079728-0cec-4388-87c2-d35595fed536/justification",
          "method": "POST",
          "query": {},
          "body": "{}",
          "authentication_method": "user_session",
          "ip": "71.81.206.41/32",
          "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36"
        }
      },
      "created_by": {
        "id": "8ccab895-d27f-4250-9d51-ae50793d3a68",
        "first_name": "Sublime",
        "last_name": "Test",
        "email_address": "[email protected]",
        "phone_number": null,
        "created_at": "2021-06-21T18:09:27.66874Z",
        "updated_at": "2022-06-14T09:11:38.629119Z",
        "role": "admin",
        "is_enrolled": true,
        "google_oauth_user_id": "",
        "microsoft_oauth_user_id": ""
      }
    },
    {
      "id": "dd529556-4578-4e54-833a-23d69053a6c5",
      "type": "message.view_contents",
      "created_at": "2023-05-04T00:58:20.681083Z",
      "data": {
        "request": {
          "id": "d1643ae7-94e6-4f3d-82ca-645456dc96f1",
          "path": "/v1/messages/groups/0c8e2ef2a2eb02fbbdafb74c8dc5e27ab1096527cc1d07483cf4519a5478dd5f",
          "method": "GET",
          "query": {},
          "body": "",
          "authentication_method": "user_session",
          "ip": "71.81.206.41/32",
          "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36"
        }
      },
      "created_by": {
        "id": "8ccab895-d27f-4250-9d51-ae50793d3a68",
        "first_name": "Sublime",
        "last_name": "Test",
        "email_address": "[email protected]",
        "phone_number": null,
        "created_at": "2021-06-21T18:09:27.66874Z",
        "updated_at": "2022-06-14T09:11:38.629119Z",
        "role": "admin",
        "is_enrolled": true,
        "google_oauth_user_id": "",
        "microsoft_oauth_user_id": ""
      }
    },
    {
      "id": "0e7017b5-60fe-49b4-ac8a-3f45765e7cf7",
      "type": "message_group.quarantine",
      "created_at": "2023-05-04T00:58:08.206579Z",
      "data": {
        "request": {
          "id": "059b0f11-0caa-4444-8f2c-6256a8bcd5a1",
          "path": "/v1/messages/groups/0c8e2ef2a2eb02fbbdafb74c8dc5e27ab1096527cc1d07483cf4519a5478dd5f/quarantine",
          "method": "POST",
          "query": {},
          "body": "{\"review_comment\":\"\",\"share_with_sublime\":false}",
          "authentication_method": "user_session",
          "ip": "71.81.206.41/32",
          "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36"
        }
      },
      "created_by": {
        "id": "8ccab895-d27f-4250-9d51-ae50793d3a68",
        "first_name": "Sublime",
        "last_name": "Test",
        "email_address": "[email protected]",
        "phone_number": null,
        "created_at": "2021-06-21T18:09:27.66874Z",
        "updated_at": "2022-06-14T09:11:38.629119Z",
        "role": "admin",
        "is_enrolled": true,
        "google_oauth_user_id": "",
        "microsoft_oauth_user_id": ""
      }
    },
    {
      "id": "377369a8-e07f-4052-b61b-6ed88c921f15",
      "type": "message.view_contents",
      "created_at": "2023-05-04T00:58:04.017724Z",
      "data": {
        "request": {
          "id": "c5494c7e-fcdc-4513-90dc-d0990b63eb7c",
          "path": "/v0/messages/6e079728-0cec-4388-87c2-d35595fed536/image_link",
          "method": "GET",
          "query": {},
          "body": "",
          "authentication_method": "user_session",
          "ip": "71.81.206.41/32",
          "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36"
        }
      },
      "created_by": {
        "id": "8ccab895-d27f-4250-9d51-ae50793d3a68",
        "first_name": "Sublime",
        "last_name": "Test",
        "email_address": "[email protected]",
        "phone_number": null,
        "created_at": "2021-06-21T18:09:27.66874Z",
        "updated_at": "2022-06-14T09:11:38.629119Z",
        "role": "admin",
        "is_enrolled": true,
        "google_oauth_user_id": "",
        "microsoft_oauth_user_id": ""
      }
    },
    {
      "id": "5d60ce00-57a1-4add-8a2a-a1c84070c320",
      "type": "message.view_contents",
      "created_at": "2023-05-04T00:58:03.719453Z",
      "data": {
        "request": {
          "id": "82f4e05b-8649-4ddc-96b5-89c3fe9133bc",
          "path": "/v1/messages/groups/0c8e2ef2a2eb02fbbdafb74c8dc5e27ab1096527cc1d07483cf4519a5478dd5f",
          "method": "GET",
          "query": {},
          "body": "",
          "authentication_method": "user_session",
          "ip": "71.81.206.41/32",
          "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36"
        }
      },
      "created_by": {
        "id": "8ccab895-d27f-4250-9d51-ae50793d3a68",
        "first_name": "Sublime",
        "last_name": "Test",
        "email_address": "[email protected]",
        "phone_number": null,
        "created_at": "2021-06-21T18:09:27.66874Z",
        "updated_at": "2022-06-14T09:11:38.629119Z",
        "role": "admin",
        "is_enrolled": true,
        "google_oauth_user_id": "",
        "microsoft_oauth_user_id": ""
      }
    }
  ],
  "count": 9,
  "start": "2023-05-04T00:55:00.91963Z",
  "end": "2023-05-04T01:05:00.246998523Z",
  "key": "sublime_platform_audit_log/2023/05/04/010500Z-MQABBD.json"
}

Example Message Events

This includes all flagged message data, under the sublime_platform_message_events type.

Example 1 (empty):

{
  "events": null,
  "count": 0,
  "start": "2023-05-03T23:55:01.06552Z",
  "end": "2023-05-04T00:05:00.309749667Z",
  "key": "sublime_platform_message_events/2023/05/04/000500Z-ONJOFG.json"
}

Example2:

{
  "events": [
    {
      "created_at": "2023-05-04T01:06:50.73801Z",
      "data": {
        "flagged_rules": [
          {
            "id": "958ad820-767f-4c83-ac44-94032151574f",
            "name": "Test rule1",
            "severity": null,
            "tags": [
              "Testing"
            ]
          },
          {
            "id": "2483da42-6905-4eca-bc8e-a5475ab906a4",
            "name": "Test rule2",
            "severity": null,
            "tags": [
              "Testing"
            ]
          },
          {
            "id": "9f95f7bb-b1f1-465a-a7a4-23266792c000",
            "name": "Test rule3",
            "severity": null,
            "tags": [
              "Testing"
            ]
          },
          {
            "id": "862b4f5b-c0f7-4e36-89b2-3091f9ac492b",
            "name": "Test rule4",
            "severity": null,
            "tags": [
              "Testing"
            ]
          }
        ],
        "message": {
          "canonical_id": "8fdb3acd8441b18478b7e80927c732f44e9086dcf7cfa6c1186ed21637427ef8",
          "external_id": "187e44c2288f2e8d",
          "id": "089b2e97-2107-4d1e-83e1-1920314dbb80",
          "mailbox": {
            "external_id": "100712120249161713725",
            "id": "3142d2f8-ac0d-4e37-bb1f-d5e4ff5f7f96"
          },
          "message_source_id": "d76ce576-4687-4182-b8e3-a220d6878b21"
        },
        "triggered_actions": null
      },
      "type": "message.flagged"
    }
  ],
  "count": 1,
  "start": "2023-05-04T01:05:00.246998Z",
  "end": "2023-05-04T01:15:00.164976076Z",
  "key": "sublime_platform_message_events/2023/05/04/011500Z-NBFUQY.json"
}
